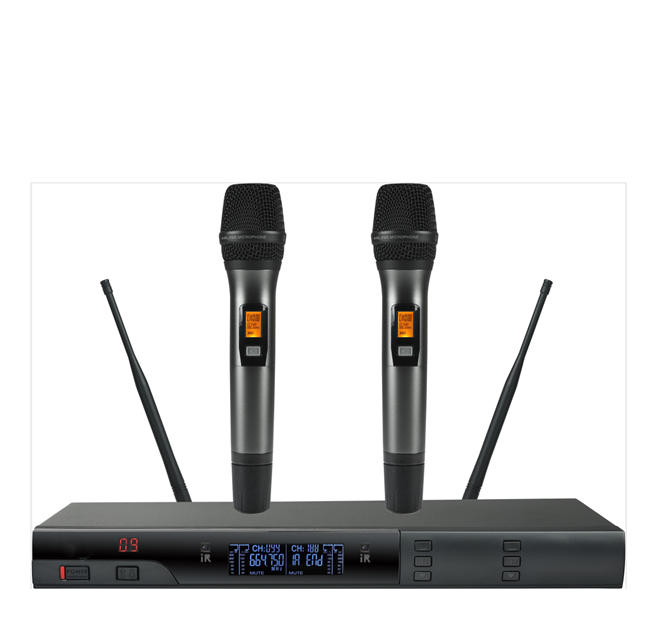

Receiver parameters:

Carrier frequency: UHF640~690MH

Modulation mode: PLL PLL integrated control

Receiving mode: FM/IRA infrared automatic locking frequency

Mode of oscillation: PLL phase locked loop comprehensive control

Rf stability: ±0.005%

Reception sensitivity: 12-32dbuv

Maximum deviation: ±35KHz with automatic volume control for audio compression and expansion processing

Band width: 50MHz

Frequency interval: 250KHz

Number of switchable frequencies: 200

Default channel: 200

Comprehensive S/N ratio: < 105dB

Comprehensive T.H.D. : > 0.5%

Integrated frequency response: 50Hz~16KHz±3dB

Output socket: balance/mix

Panel display: LCD LCD display RF/AF/CH/FQ/LOCK

Frequency adjustment: automatic and manual backup of IRA infrared ray

AC power supply: DC 12v-18vac

Parameters of handheld transmitter:

Carrier frequency band: uhf640-690mhz

Oscillation mode: PLL PLL - PLL - PLL - PLL - PLL - PLL - PLL - PLL - PLL - PLL

Band width: 50MHz

Transmission power: 10mW-30mW adjustable

Harmonic radiation: >-50db

Maximum deviation: ±35KHz with automatic volume control for audio compression and expansion processing

Voice head: moving coil

Battery usage: two 1.5VAA batteries

Frequency adjustment: IRA infrared automatic, manual backup operation display: LCD LCD display battery power, channel,

T35 microphone features

1. New circuit design, phase compensation, distortion correction, dynamic expansion and other advanced circuit performance more stable, more balanced sound, higher fidelity, panel button selection, digital tube display four different styles of singing mode

2.PLL integrated with VCO PLL integrated control technology makes rf signal performance more stable.

3. Double backup of IR infrared automatic frequency matching and SCAN automatic frequency searching function, SCAN can accurately and quickly search clean frequency points on the scene, and eliminate interference and serial frequency phenomenon caused by simultaneous use of multiple machines.

4. The function of random identification of digital pilot frequency by ID code can prevent the simultaneous use of interference and serial frequency by multiple machines.

5. Handmi aluminum reinforced structure against falling, better shock resistance, more durable.

6. Hand meter surface treatment oxidation coloring process, anti-alcohol and other corrosive longer, anti-wear and scraping degree of longer time.

7. Fix the hand microphone head screw and cooperate with the high strength elastic head to prevent the entertainment place guests from disassembling and prevent the microphone core from damaging.

8 manual mi with mute mode and non-mute mode switching function, after K song if the manual mi stop for 3 seconds not to move, no sound output to prevent squealing function, static standby for 5 minutes not to move automatically shut down with power saving function, conference speech must be rebooted long press on key for 10 seconds to cancel the mute mode, convenient for users to choose.

9. The manual microphone is equipped with power levels of 15mw and 30mw.

10. The host is equipped with SQ receiving intensity adjustment knob, which can flexibly find the range of 0~40M according to the size and distance of the compartment.

11. The host can use a combination of keys to set the interface lock to prevent users from misoperation, and can be set to boot use 000~999 times for easy maintenance.

12. Initiated the design of host 0~2K impedance matching adjustment function, can adjust the high, medium and bass more, can better match the sound system.

Question 1: What kind of packing can you provide?
Answer:We will use carton packaging for power timing device products, color neutral without any product LOGO. Distribution cabinet products are packed in airmail boxes or cartons. Of course, if you have special requirements, we can also pack the products according to your requirements, the cost is calculated separately.
Question 2:What are your payment terms?
Answer:T/T is 30% of the deposit, and pay 70% of the balance before delivery. Before you pay the balance, we will show you the pictures of the products and packaging.
Question 3:How long will it take to finish production?
Answer:Generally speaking, distribution cabinet products need 5 to 10 days after receiving the advance payment. The exact delivery time depends on the items and quantity of the order. The power timing device will be produced in 3-10 days, we will negotiate the details.
Question 4:Can we produce according to the sample?
Answer:Yes, our company supports customization, so we can produce through your samples or technical drawings. We also have our own technical designers.
Question 5:Do you accept custom orders?
Answer:You can. Our company is an OEM manufacturer, so we welcome custom orders. We will customize it according to your requirements.
Question 6:What is our company's advantage over other companies?
Answer:Our company has always been a audio industry power products manufacturers, including:
1. The production of various types of portable distribution box; 2. Power timing device;
3. Specialized in producing peripheral products of power supply;
4.HIFI power cable.
