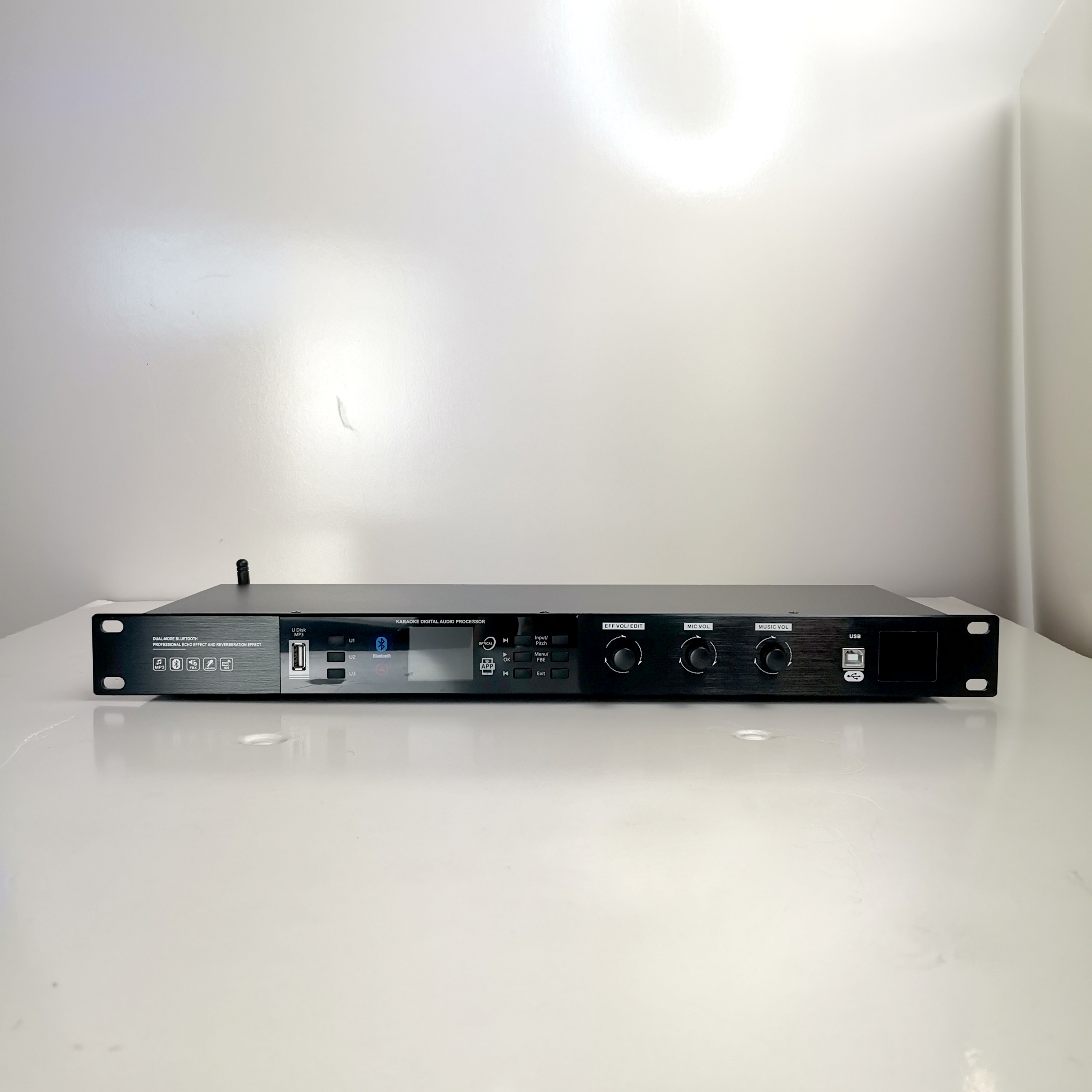

Digital And Analog Double Effect Front Stage Effector Built-In
32-Bit High Performance Dsp
Product introduction
1:Adopt 32-bit high-performance DSP and AD / DA, 24 bit / 48K
sampling pure digital professional KTV front stage effector.
2:LCD color high resolution Chinese and English display screen.
3:Dual-mode Bluetooth enables you to play high-quality music and control android APP on your phone.
4:Usb music playback function supports MP3/WMA/WAV/FLAC/APE multiple
formats.
7: Optical fiber digital audio input.
8:Group AB microphone input, independent 5 - stage equalization
adjustment.
9:The unique microphone feedback suppression technique has 4 levels
of adjustable strength.
Effectively prevent screaming.
10:With professional singing echo effect and reverberation effect.
It also has a music tune-changing function.
11:Output channels can output independently.
12:singing mode / hot dance mode / automatic mode.
13:Password management is divided into: administrator, user and
primary mode.
14:Password key lock function.
The initial and maximum volume values can be locked.
15:Can save 10 sets of user parameters and call at any time.
16:VOD song control interface RS232. wireless infrared remote control function.
17:Drive free USB interface connection, real-time control of all
parameters through PC software.
18:Switching power supply realizes wide voltage operation (85-250v 50 / 60Hz)
19:Energy saving, environmental protection and low power
consumption.
Technical reference
Frequency Range:MIC:20-200000Hz;MUSIC:20-20000Hz
Frequency Response:+/-1dB
SNR:>93dB THD+N:<0.01%
Dynamic Range:ADC 105dB, DAC 105dB
Maximum Input Level:MIC:160mVrms/-15dBV;MUSIC:3.8Vrms/12dBV
Maximum Output Level:MIC:3.8Vrms/12dBV;MUSIC:3.8Vrms/12dBV
Noise Level:MIC:<-85dBu;MUSIC:<-90dBu
Input Interface:MIC:4 channels wired microphone, divided into A/B group.
MUSIC:stereo(IN1/2),(Optical),(Coaxial),USB,bluetooth
Output Interface:Six Canon (XLR) 6-channel outputs, one stereo recording output.
| model | fuselage size | net weight | Packing size | Gross weight |
| KA-510 | 483x215x50mm | 3.2KG | 550x270x90mm | 4KG
|
FAQ
Question 1: What kind of packing can you provide?
Answer:We will use carton packaging for power timing device
products, color neutral without any product LOGO. Distribution
cabinet products are packed in airmail boxes or cartons. Of course,
if you have special requirements, we can also pack the products
according to your requirements, the cost is calculated separately.
Question 2:What are your payment terms?
Answer:T/T is 30% of the deposit, and pay 70% of the balance before
delivery. Before you pay the balance, we will show you the pictures
of the products and packaging.
Question 3:How long will it take to finish production?
Answer:Generally speaking, distribution cabinet products need 5 to
10 days after receiving the advance payment. The exact delivery
time depends on the items and quantity of the order. The power
timing device will be produced in 3-10 days, we will negotiate the
details.
Question 4:Can we produce according to the sample?
Answer:Yes, our company supports customization, so we can produce
through your samples or technical drawings. We also have our own
technical designers.
Question 5:Do you accept custom orders?
Answer:You can. Our company is an OEM manufacturer, so we welcome
custom orders. We will customize it according to your requirements.
Question 6:What is our company's advantage over other companies?
Answer:Our company has always been a audio industry power products
manufacturers, including:
1. The production of various types of portable distribution box; 2.
Power timing device;
3. Specialized in producing peripheral products of power supply;
4.HIFI power cable.
